Gravity Conveyor Roller Series 1100

IDRD-11EEJAALAE

The pictures are illustrative and do not resemble the actual product
Suitable for quiet applications
Not suitable for freezer area
Partially suitable for moist areas
Products for medium-duty materials


If you cannot find a certain configuration please contact our Sales Team

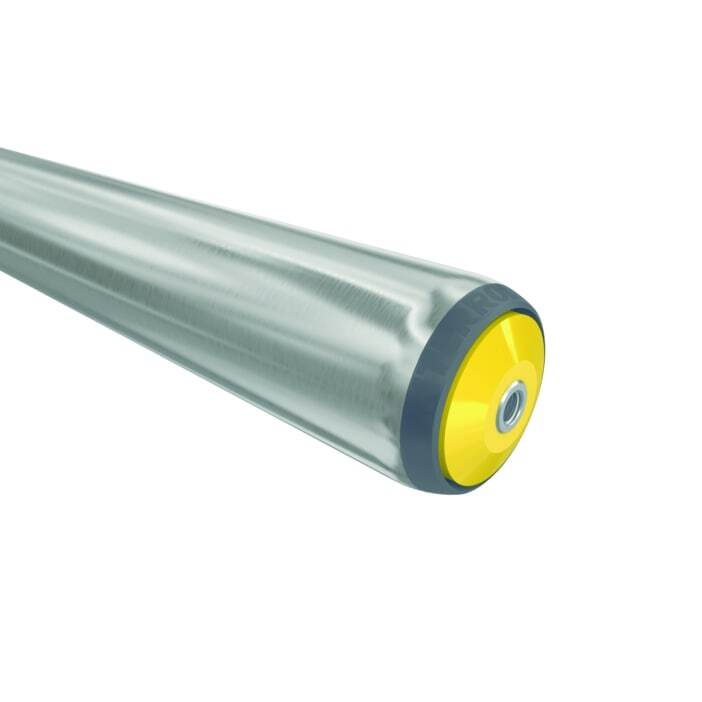

Gravity Conveyor Roller Series 1100

Internal conveyor systems, particularly suited for cost-efficient implementation of gravity or push conveyors. Can also be used in the food processing sector. The grease used in the bearings is FDA-compliant.

The rollers consist of stainless material. Upon request, it is also possible to use stainless steel balls.

The smooth surfaces protect against dirt accumulation.

The tube ends are rounded, thereby allowing materials to be easily moved on from the side.

For axial fixation of the bearing housing, the bearing assemblies for PVC tubes starting at a diameter of 30 mm are secured with an internal press-in edge in addition to the press fit.

Tube Colour:
Nature
Spindle B Def Execution Len 2
0mm
Tube Outer Diameter 1:
50mm
Endcap Additional Info Type:
Without
Tube Additional Information:
Without
Spindle A Default Ext Length
0mm
Endcap Redesign:
New Design
Tube Execution 1:
Without
Tube Wallthickness 1:
1.5mm
Spindle Radial Groove Quantit
0
Spindle Execution 2:
Without
Spindle Diameter:
12mm
Spindle B Def Execution Len 1
0mm
Spindle A Def Execution Len 2
0mm
Antistatic Type:
Without Antistatic
Spindle Hardware:
Without
Spindle Execution 1:
Female Thread Both Sides 8x15
Spindle B Default Ext Length
0mm
Spindle Material:
Mild Steel
Endcap Bearing Type:
Conical Mild Steel Oiled
Product Specification:
RD-SPP-0021
Spindle Spring Side:
Without Spring
Endcap Swaged Selection
Both Sides
Endcap Inner Diameter:
12mm
Spindle A Def Execution Len 1
0mm
Tube Material:
Zinc Plated
Spindle Shape:
Round
Spindle Additional Info:
W/O
Tube Execution 2:
Without
Endcap Colour
Yellow
Download
Download Information about the Series
