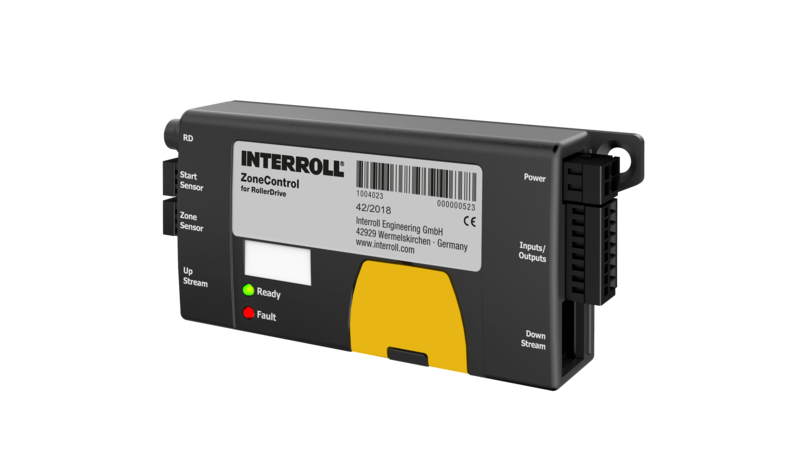

ZoneControl
Single-zone control system for the 24 V RollerDrive EC5000 with analogue interface
Zero pressure accumulation conveying (ZPA) for systems with a small to medium number of conveyor zones in normal ambient temperatures. Applications with or without PLC, but without fieldbus.Zero pressure accumulation conveying (ZPA) for systems with a small to medium number of conveyor zones in normal ambient temperatures. Applications with or without PLC, but without fieldbus.
- Logic for zero pressure accumulation conveying incl. initialisation
- Communication with upstream and downstream zones
- Speed adjustment (8-position DIP switch, analogue signal)
- Direction of rotation adjustment (DIP switch, external digital signal)
- Easy operation without addressing
Technical data
| Mains voltage | 24 V DC |
| Voltage range | 19 to 26 V DC |
| Performance | 20 W, 35 W |
| Protection Rate | IP20 |
| Interface | AI |
| Ambient conditions | |
| Ambient temperature in operation | 0 to +40 °C |
| Ambient temperature during transport and storage | –40 to +80 °C |
| Max. installation height above sea level | 1000 m (at higher altitudes, a reduction of performance values is possible) |
