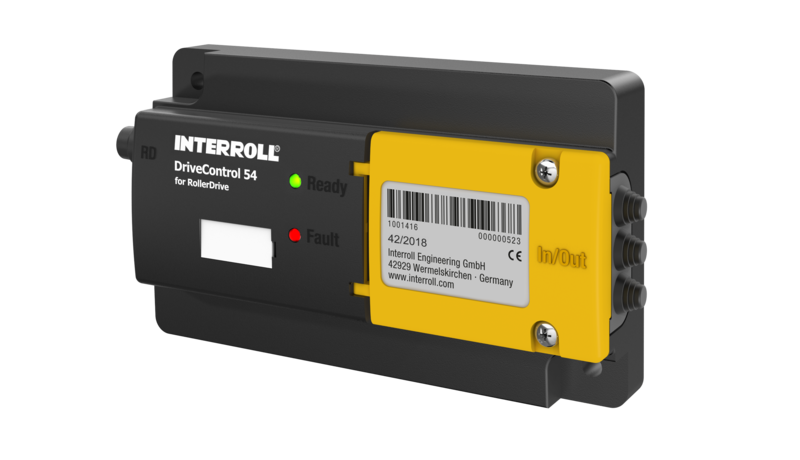

DriveControl 54
Control system for the 24 V RollerDrive EC5000 with analogue interface
Basic control system for the RollerDrive EC5000 in applications without start/stop operation, e.g. in roller conveyor curves or mechanical engineering applications at normal ambient temperatures and at low temperatures. Thanks to its high protection rating of IP 54, it is suitable for applications involving spray water (e.g. sprinkler systems). The DriveControl 54 does not contain any logic and requires external signals. Ideal solution for small applications with no more than ten RollerDrives and PLC, but without fieldbus.
- Use in damp environments
- Speed adjustment (15-position DIP switch, 7-way digital input)
- Direction of rotation selection (via DIP switch or digital input)
- Error signal output
- Status display via LEDs
- Voltage limitation via braking resistor
Technical data
| Mains voltage | 24 V DC |
| Voltage range | 19 to 26 V DC |
| Performance | 20 W, 35 W |
| Protection Rate | IP54 |
| Interface | AI |
| Ambient conditions | |
| Ambient temperature in operation | –28 to +40 °C |
| Ambient temperature during transport and storage | –40 to +80 °C |
| Max. installation height above sea level | 1000 m (at higher altitudes, a reduction of performance values is possible) |
Old Material No SE10 = OX 16
89RB
Old Material No DK20 = OX 60
89RB
Old Material No FI10 = OX 18
89RB
Old Material No FR20 = OX 48
89RB
OX Material No DE10 :
89RB
Expiry Reason
NO STOCK
Control Type:
Drivecontrol
Control Feature:
IP54
Manual Motor Type
Drivecontrol IP54
